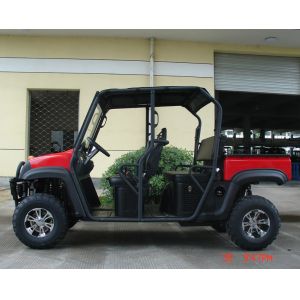

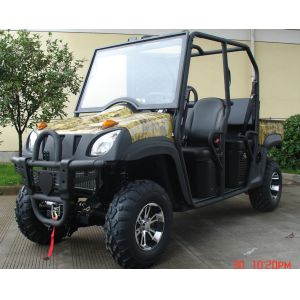

500CC CF188 4x4/2x4 switchable Four-stroke cycle single-cylinder shaft drive transission water cooled
Model:
sports utility vehicle500cc11
Product Description:
| Engine type | CF188,Four-stroke,cycle,single-cylinder,shaft drive transission,water cooled | |
| Engine brand | CFMOTO | |
| Displacement | 493 cc | |
| Cooling | Water cooled | |
| Max horsepower | 32HP,24 KW | |
| Max torque | 38.8N·m/5500r/min | |
| Bore*stroke | 87.5 x 82mm(3.44x3.23in) | |
| Max speed | 50m/h,80km/h | |
| Climbing ability | >30° | |
| Ignition | C.D.I | |
| Starting system | non-touch CDI DC start | |
| Battery | 12V/ 36AH | |
| Carburetor brand | MIKUNI | |
| Engine oil | SAE 15W—40/SF | |
| Gear oil | ||
| CHASSIS ETC. | ||
| Clutch | Automatic | |
| Transmission | H/L/N/R | |
| Driveline | shaft | |
| Driving wheel | 4 wheel drive | |
| Suspension,front/rear | Front single, rear double | |
| Brakes,front/rear | Front disc, rear disc | |
| Brake operation | foot brake | |
| Tires,front/rear | Front 25×8.00-12 Rear 25×10.00-12 | |
| Fuel capacity/type | 22L | |
| Weight,G.W./N.W. | 630 KG/680KG | |
| Max load | 300 KG | |
| DIMENSIONS | ||
| Wheelbase | 1730 MM | |
| OA L*W*H | 2600×1280×1960 MM | |
| Height to seat | 890 MM | |
| Min ground clearance | 210 MM | |
| Carton size | 2.32 X 1.31 X 1.27 MM | |
| Shipping info | 8UNITS | |
Applications:
For adult use only, Forest road, Riverbed, Stream,
Mountain Road, On the Beach, Farm and Pleasure Ground
Terms of transaction:
We have EPT and DOT certificate and you can buy this UTV in our company. We will help you to do customs clearance when it arrives and you will get it safely.
| 1. For the sample: we can delivery the sample at the first order. but need add some sample fee to balance the export cost in Chinese custom. |
| 2. The UTV COLOR can choose by yourself on the ordinary colors,Also can do the custom-made |
| 3. Shipping:General by the sea shipping, port to port. can't do the door to door. |
| 4. The Package: The bike have been 90% assembled, with the accessory kit can be do rapid |
| assembly. Don't need professional tools and mechanic. |
| 5. Delivery: we have no stock, all of these UTV is production by the order, Just for one order, the production time general will take about 15-20days. |
| 6. If for the EEC Model, can delivery the COC certificate for you registration, Also can delivery the Certificate Of Origin(CO). |
| 7. Warranty: Engine and the Frame is one year, the other if not Artificial damage is 5 months. The spare parts also can order from us. |
